Appearance
Configuration
Everything both gateways need lives on one page: Admin → Plugins → Cashfree → Settings (admin login required). Configure it once — Cashfree and Cashfree Subscription read the same credentials.

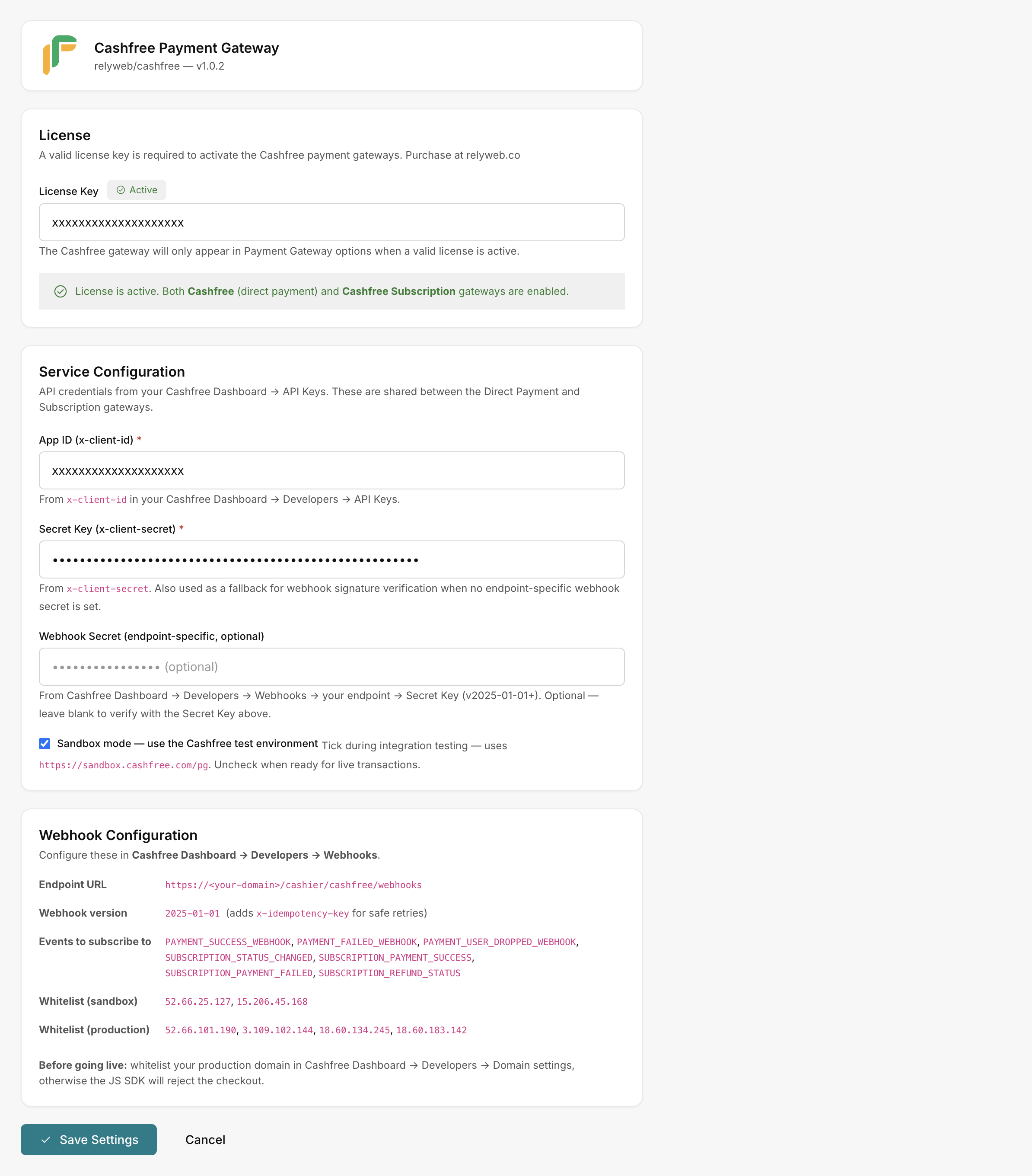

Admin → Plugins → Cashfree → Settings
License
Paste your License Key → Save Settings. A status badge shows the result:
| Badge | Meaning |
|---|---|
| Active | "License is active. Both Cashfree (direct payment) and Cashfree Subscription gateways are enabled." |
| Not configured | No key entered yet |
| Invalid — payment gateway is disabled | "License is not active. Cashfree gateways will not appear in Payment Gateway options until a valid license is entered and saved." |
The check runs locally in the background against relyweb.co; brief outages are tolerated. If the badge slips, re-enter and re-save. See Licensing.
Service Configuration
The Cashfree credentials both gateways share, from Cashfree Dashboard → Developers → API Keys (Get your API keys).
| Field | What to enter |
|---|---|
| App ID (x-client-id) | Your client ID. Help: "From x-client-id in your Cashfree Dashboard → Developers → API Keys." Test keys begin with TEST |
| Secret Key (x-client-secret) | Your secret (password field). Also the fallback for webhook signature verification when no Webhook Secret is set |
| Webhook Secret (endpoint-specific, optional) | From Cashfree Dashboard → Developers → Webhooks → your endpoint → Secret Key (webhook version 2025-01-01 or newer). Blank verifies with your Secret Key |
| Sandbox mode | Ticked → test base URL https://sandbox.cashfree.com/pg; unticked → live production |
Match keys to Sandbox mode
Cashfree selects environments via the checkbox, not the key format:
- Sandbox ticked: Use Test keys (App ID starting with
TEST). - Sandbox unticked: Use live Production keys.
- Mismatch: Results in authentication failures at checkout.
Webhook Configuration
A reference card showing the values to paste into Cashfree. Your webhook endpoint:
https://YOUR_DOMAIN/cashier/cashfree/webhooksFollow Configure webhooks to add the endpoint on both the Payment Gateway and Subscriptions tabs.
Save and next
Click Save Settings after any change. With an Active license, both gateways become available in Admin → Payment Gateways.
- Wire up webhooks.
- Map recurring plans in Set up subscriptions.
- See the Settings reference.
